3D Panel Machine

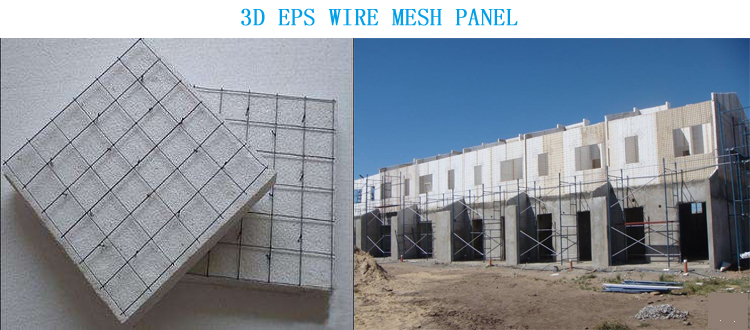

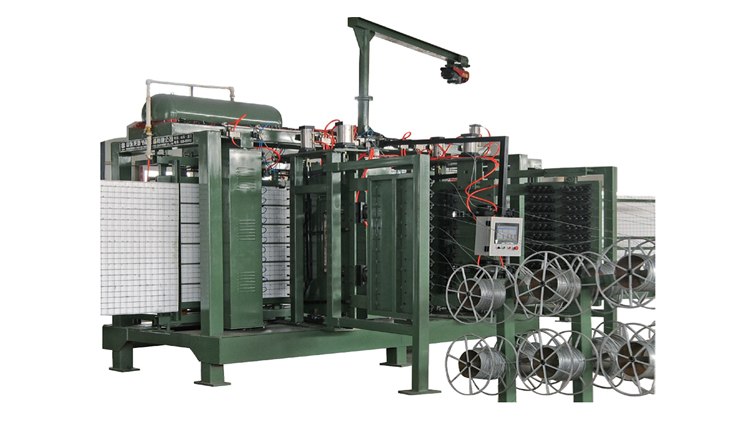

The Vertical 3D panel production line is a fully automatic plant with electronic process control, producing 3D panels of varying thickness and length accurately, with high precision and strong welds to give the builder a product of outstanding quality.

Machine Parameters:


Especially, the vertical 3D panel machines has features as below:

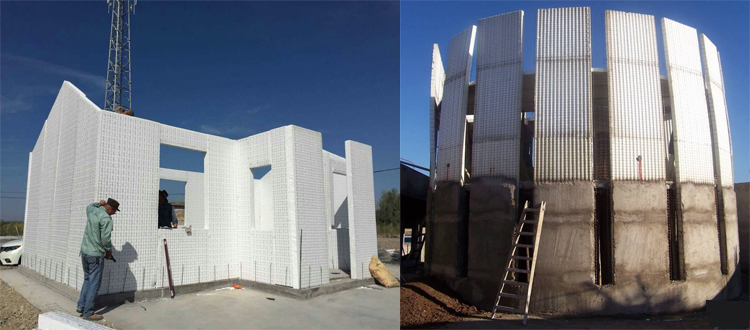

1. It can produce both single-layer and double-layers 3D panels for external wall insulation systems and with high capacity.

2. it has an integrated pneumatic system for the equipment to ensure its stable operation, high reliability, and long life span.

3. The Steel Wire Feeder of the A type equipment has the pneumatic system and the welding angle is not adjustable.

4. The Steel wire Feeder of the B type equipment has the pneumatic clamping device and the welding angle can be adjusted.

5. the machine is easy to operate and maintenance with the self-testing capability and automatic alarm system.

6. It can also produce the mineral wool 3D panel.
