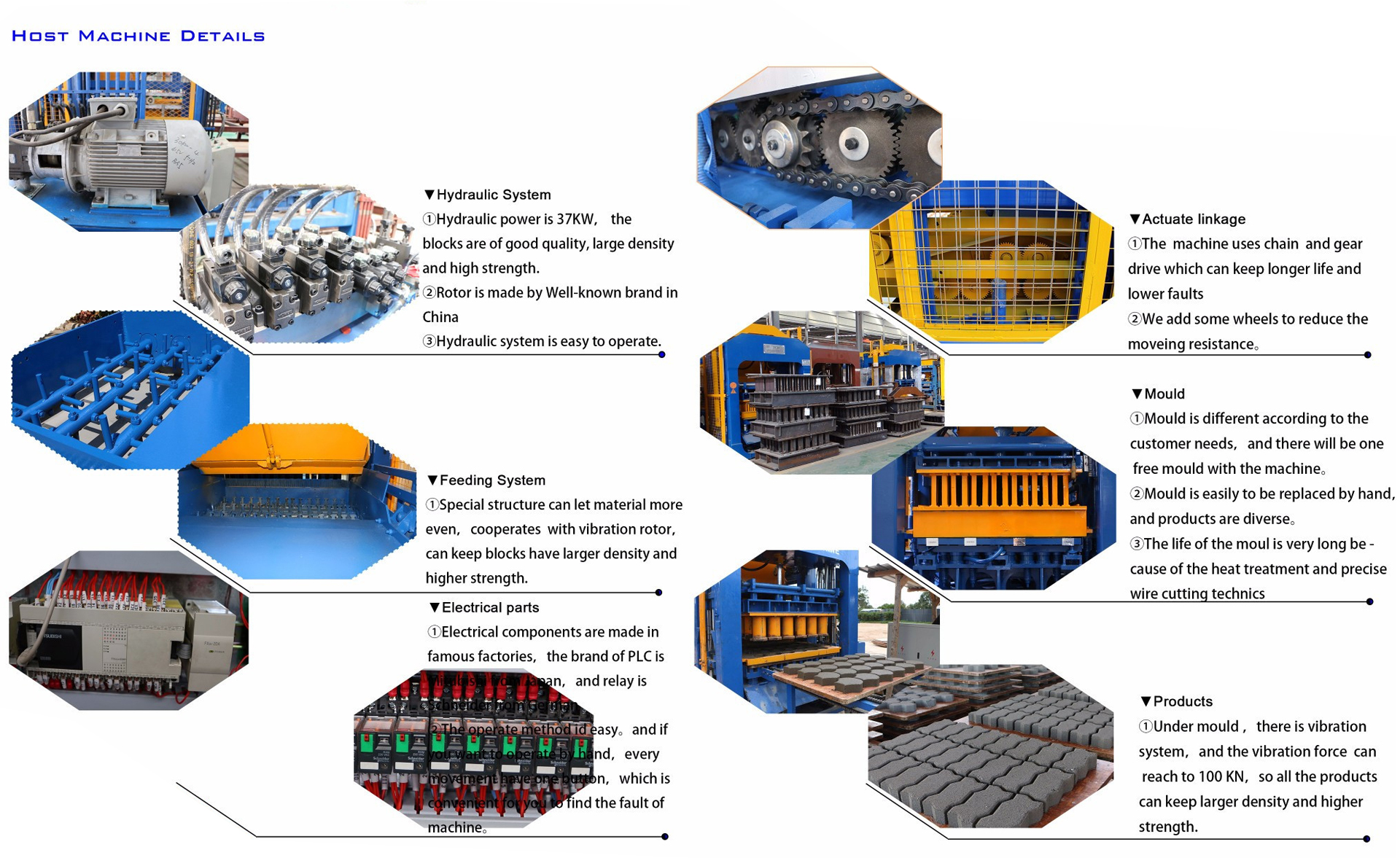

QT4-15 uses automatic loading and vibration molding for concrete blocks, pavers and curbstones.
Technical Parameters
| Overall Dimension | 7100*1600*2610mm |
| vibration frequency | 2800-4500(r/min) |
| Main Vibration Form | Platform Vibration |
| molding mode | load automatically, vibration molding |
| Pallet Size | 1020x570mm |
| Molding cycle | 15-20s |
| Overall Power | 27.5kw |
| Vibration Force | 100KN |
| Demolding method | Hydraulic |
| Applied Products | Concrete blocks, hollow/solid blocks, pavers, interlocking blocks, curbstone, colored pavers, etc. |
| Raw Material | Crushed stone, sand, cement, dust, and fly ash, gravel, slag, and other material |
| block type | size | block making period | per mould | blocks/hour |
| hollow block | 400*200*200 | 15-20s | 4 | 720-960 |
| Multi hole brick | 240*115*90 | 15-20s | 12 | 2160-2880 |
| solid brick | 240*115*53 | 15-20s | 26 | 4680-6240 |
| Paver | 200*100*60 | 20s | 16 | 2880 |
| I shape paver | 200*163*60 | 20s | 12 | 2160 |
