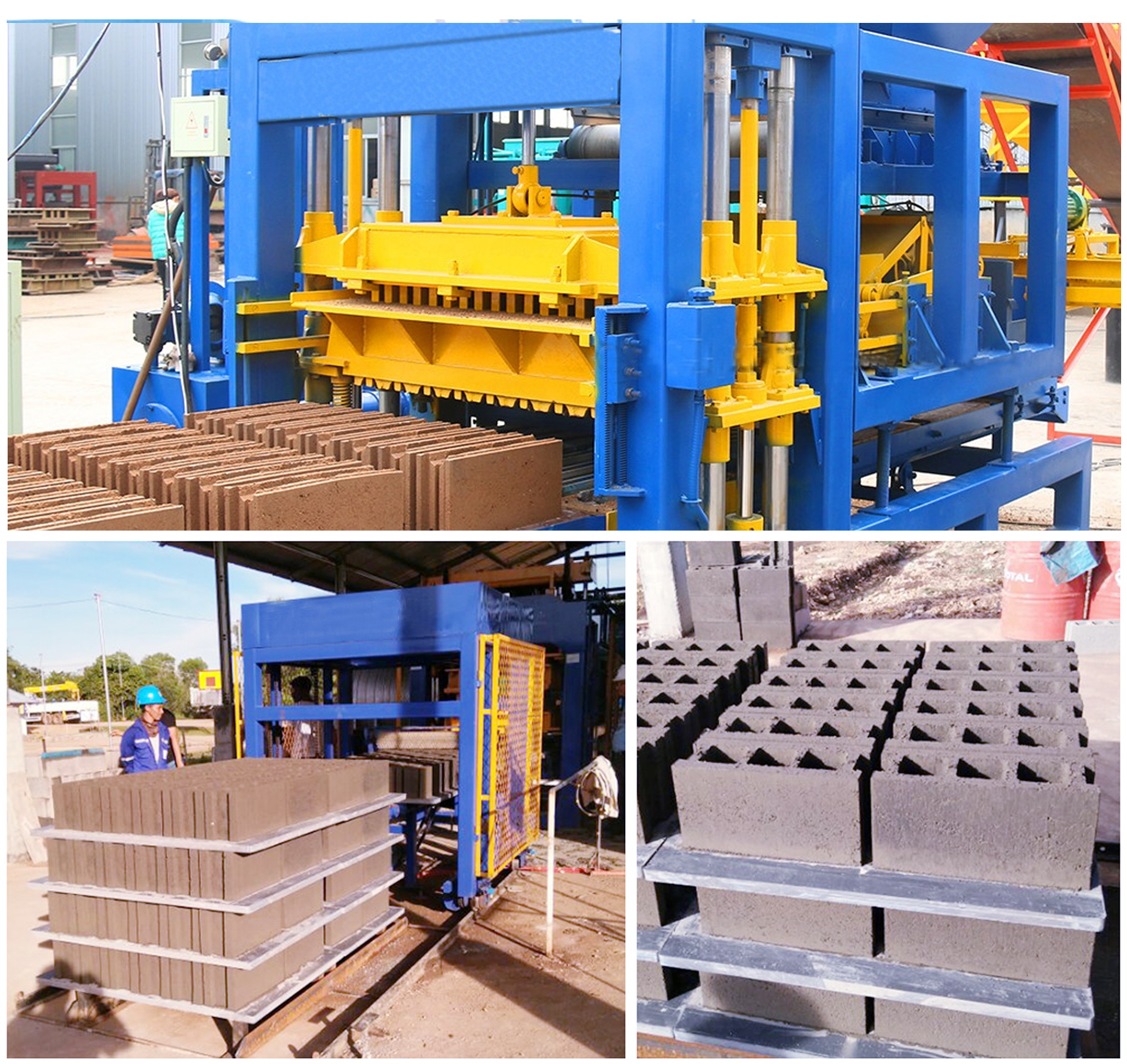

QT5-15 uses vibration pressing and rotary material distribution to form concrete blocks.
Technical Parameters
| Machine dimensions | 4200*2500*2600mm |
| Molding area | 1100*550mm |
| Molding height | 50-200mm |
| Molding cycle | 15-25s/time |
| Pallet size | 1150*580mm |
| Total weight | 5T |
| Total power | 29.75KW |
| Main Parts | Molding Host Machine, Oil Station, Conveyor Belt System, Automatic stacker, PLC Control Unit |
| Accessory Parts | Mixer, PL1200 Batching Machine, Cement silo (50T), Cement scale, Water scale, Pallet, Loader, Forklift or Hydraulic Trolley |

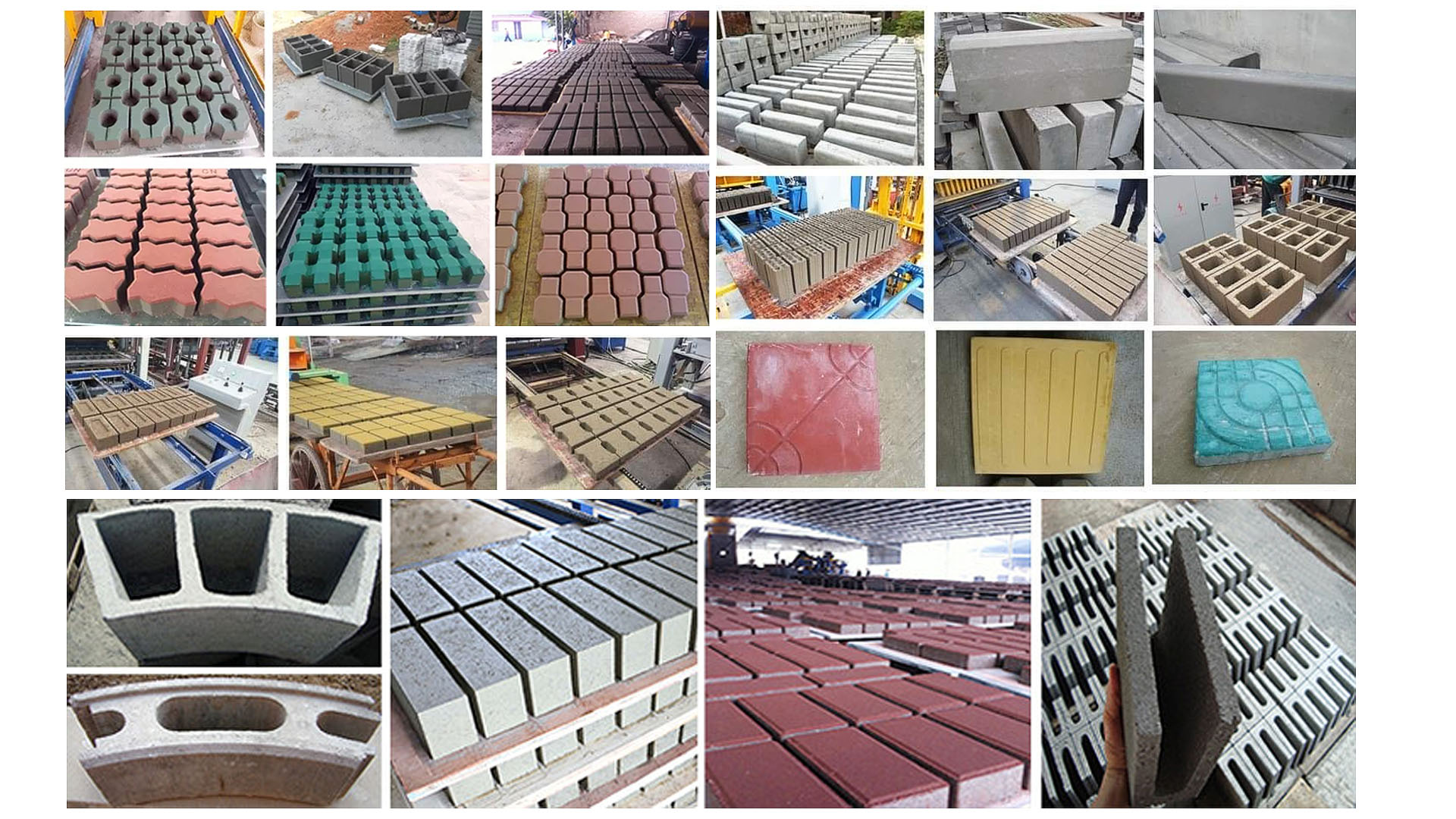

| Type | Dimension (mm) | Molding Pieces | Output/shift (8hrs) | Annual Output (300days/year) |
| Hollow Block | 390*190*190 | 5pcs/mould | 9,600pcs | 2,880,000pcs |
| Standard Brick | 240*115*53 | 32pcs/mould | 61,440pcs | 18,432,000pcs |
| Porous block | 240*115*90 | 16pcs/mould | 30,720pcs | 9,216,000pcs |
| Paving Brick | 200*100*60 | 18pcs/mould | 34,560pcs | 1,036,800pcs |
