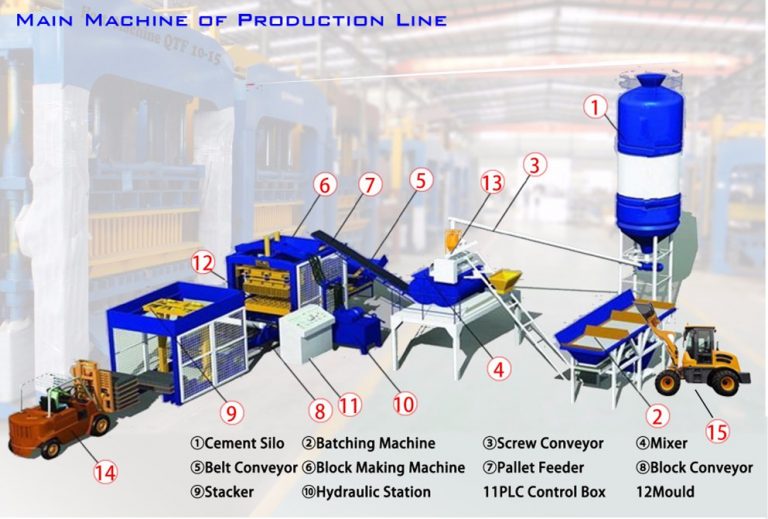

QT10-15 automates material feeding, vibration molding and block stacking for concrete block production.
Technical Parameters
| Name | Description | |
| Maximum overall dimensions of table | 6800mm*2090mm*3125mm | |
| Rated pressure of hydraulic system | 21MP | |
| Main vibration mode | Table vibration | |
| Vibration frequency | 47-75HZ | |
| Vibration acceleration | 10-15g | |
| Applicable brick height | 50-200mm | |
| Pallet | Wooden | 1100*870*(40±1)mm |
| Iron | 1100*870*(8~10±1)mm | |
| bamboo | 1100*870*(20~25)mm | |
| Molding cycle | 12-25sec, or 20-25sec if adding color material | |
| Output per hour | Paver brick （250*250*60mm） | 135cbm |
| Hollow block (390*190*190mm) | 25cbm | |
| Capacity of charging device | Effective volume of storage bin0.7m3 | |
| Effective volume of charging car0.2m3 | ||
| Total power | Main machine 47.68KW | |
| Total weight | 9840kg | |
| Type | Dimension | Molding pieces | Output per Hour | Output per Day (8hr) |

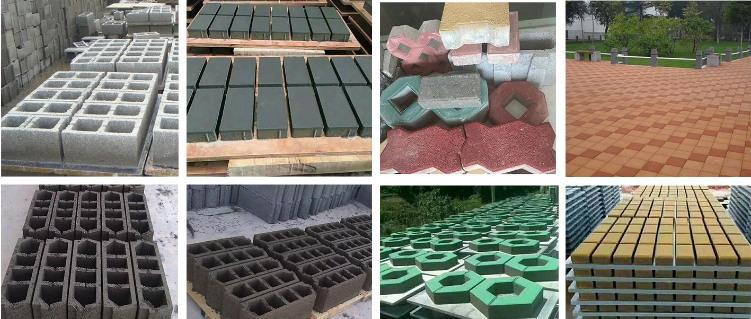

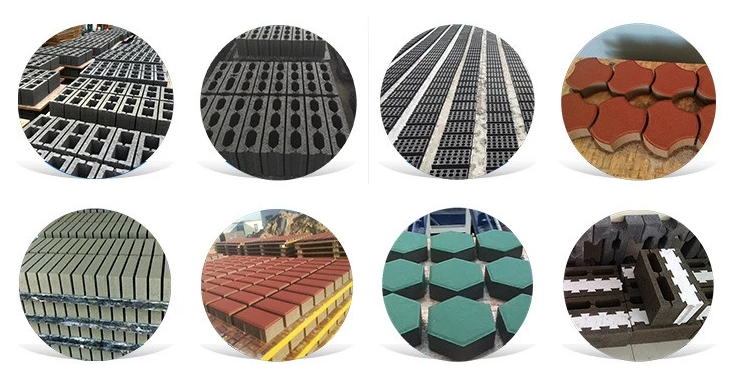

| Standard brick | 240x115x53mm | 48pcs/mold | 14,400 pcs | 115,200 pcs |
| Hollow block | 400x200x200mm | 10pcs/mold | 2,400 pcs | 19,200 pcs |
| Porous block | 240x115x90mm | 24pcs/mold | 7,200 pcs | 57,600 pcs |
| Paving block | 200x100x100mm | 32pcs/mold | 4,608 pcs | 36,864 pcs |
